Features:

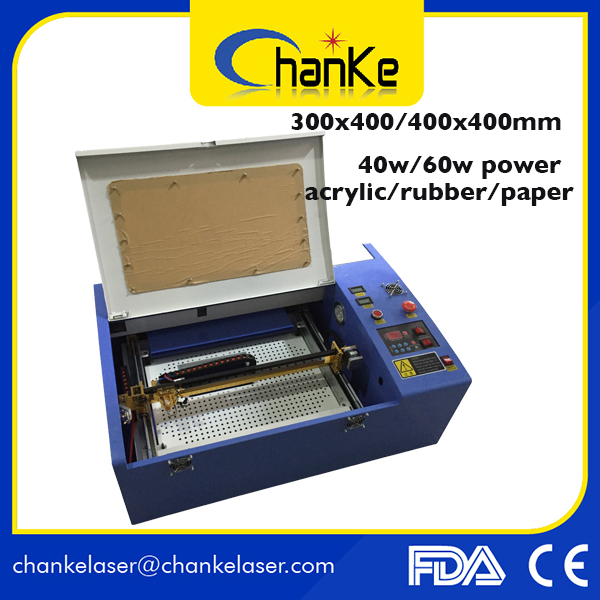

This mini laser machine is belongs to the desktop size, it is quite powerful with 40w water cooling tube, beside it engraving all kinds of the stamps, it can also engraving all other nonmetal materials ,it can also do the cutting jobs for the thin materials, but except the Metal materails.
The machine can support the CorelDraw output directly from the machine , it is good and nice machine
Applications
The laser seal machine is suitable for seal materials such as plastic, organic glass, horn, rubber plate, leather,2-color board and wood and all other nonmetal materials
This machine using the slide block to rub with the Squail rail to when laser head is moving. most of the rubber stamp machine is using the plastic pully to rub the grid when laser head moving, it is very easy to broken, if you are a new user, please choose the first one , becasue some new users easily to fired the plastic screw( pully) when it working. then it will be not work that machine.
Technical Data
Specifications |
Laser power | 40w /60w |
Control | corelaser |
Table | Honeycomb table |
Engraving speed | 100-3000mm/min |
Resolution ratio | 0.0125mm |
Minimum shaping character | Letter 1 mm, Chinese 2mm |
Support graphic format | BMP, PLT etc. |
Connect | With the USB interface |
Working Voltage | AC220V 50HZ 3A / AC110V 60HZ 3A |
Gross power | 200W |
Net weight | 32KG |
