Applicable materials: Fabric, clothes, wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials
Applicable industries: advertisement, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry

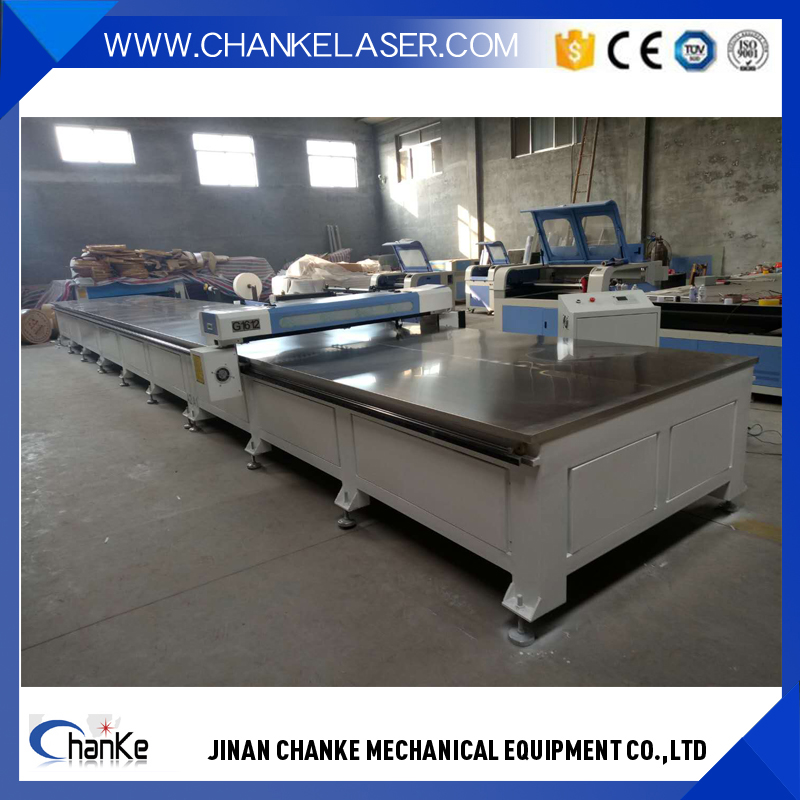

Specifications
Working area: 1600X12000mm
Table: vaccum pump for laser table to adsorption cloth material
Structure: Gear -wheel for Y axis
Power: 150W reci
Laser tube type: 8000-10000 hours working life time
Control mode: USB interface
File export Software: DSP OR READER
Compatible file design software: Photoshop, Corel draw, AutoCAD, etc
Files Support:: bmp, plt, eps, poes, jpg, ai, tiff, dxf, dwg, cdr, tga, jpeg, DST etc.
Mechanical orbits: Taiwan HIWINbrand orbits, with high precision and long life time.
Motor and driver type: Step motors and step drivers
Cooling type: Chiller cw5000
Table type: (engraving and cutting) strip type table.
360 degree slope engrave: Support
Red point function
Laser power : | 150 W (optional) |
Laser tube type: | CO2 glass tube |
Power supply: | AC220±10, 50 HZ |
Cooling way: | Water cooled with protection system |
Working area: | 1600x12000mm |
Max travel speed: | 1500mm/min |
Worktable: | Flat table with vacuum pump |
Locating precision: | <0.01mm |
Min shaping character: | Character:2mm,letter:<1mm |
Operating temperature: | 5°C-35°C |
Working humidity | 5%-95%(without condensed water) |
Resolution ratio: | 4500dpi |
Control configuration: | DSP or READER |
Data transfer interface: | USB(offline) |
System environment: | WINDOWS 2000/WINDOWS XP/ windows 7 |
Graphic format supported: | The file which CorelDraw, Photoshop, AutoCAD can identify. |
Compatible software | CorelDraw, AutoCAD, Photoshop, laser cut software |
Cutting thickness | 0-20mm also (depends on different material) |
Color separation | Separation of cutting up to 256 colors |
Sloping engraving | Yes, slope can be designed discretionarily |
Cuts off the water supply the protection | yes |
Whole machine dimension | 13010x1930x1420(mm) |
Gross weight | 1000kgs |
packing | Plywood case (veneer wood case for export) |
Main accessories included:
1) 1*Air pump (blowing dust during work)
2) 1*Exhaust fan with Tube clips (heat radiation and smoke extraction)
3) 1* chiller (used for bigger power tube cooling)
4) 1*USB Cable (connecting PC and machine)
5) 1*CD or electronic documents (including software, user manual, guiding videos etc)
6) 2*Power cables
7) 1*Tool box (for routine maintenance)
Quality warranty:
1. The laser tube of normal tube is 3 months, RECi tube is 8 months.
2. The other parts of machines are all one year.
3. Technical service is whole life time of the machine
After service:
1. To reply your question or solve problem: within 24 hours, whatever online via chatting tools like: MSN, YAHOO MESSENGER, SKYPE etc, by email or by telephone.
2. Machine will offer installation vedio, operation vedio, manual.
Delivery time:
7-10 working days after getting prepayment, usually 7-10 working days.
Payment term:
By sea: T/T 50% in advance, the balance before delivery.
