Product Detail

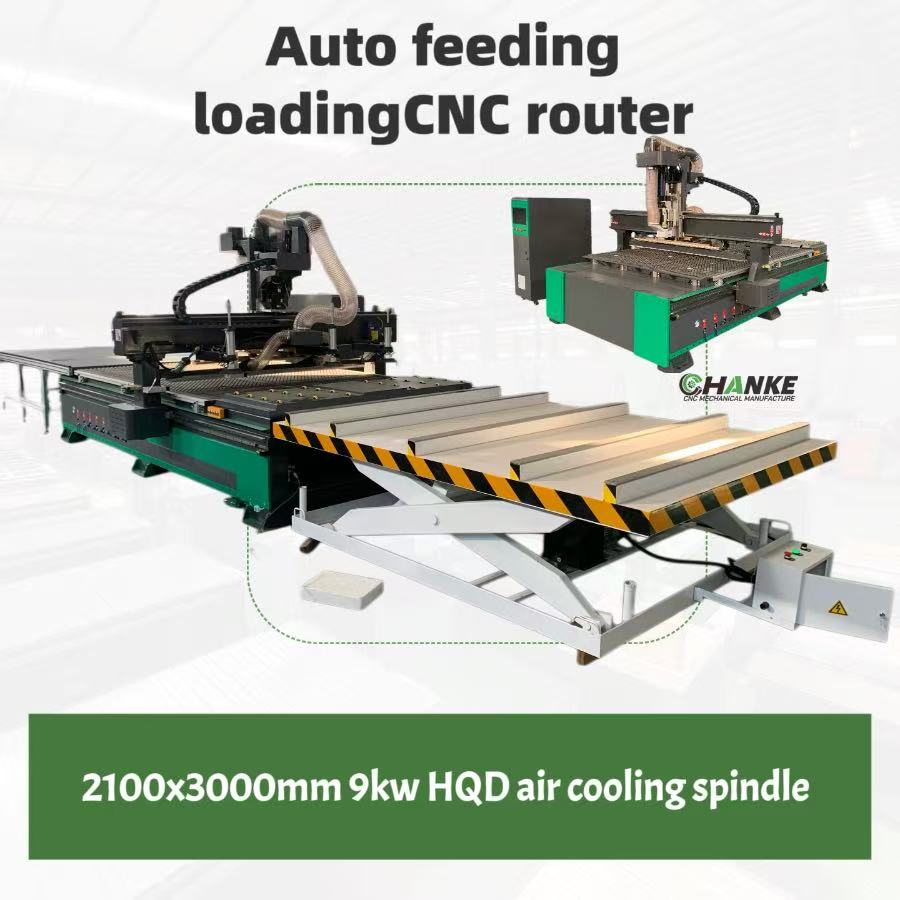

CK2030 ATC6 tools liner wood cnc  router

CK2030 ATC6 tools liner wood cnc  router

Detail

Technical Parameters:

ModelAC-1325ATC8AC-1530ATC8AC-2030ATC8
Machine Dimension2500 x 3200 mm
8.2'x10.5'		3000 x3800mm
9.84'x12.5'		3500 x3800mm
11.5'x12.5'
Working Size1300 x 2500 x 200mm
(4.3 x8.2 x0.66ft)		1500 x 3000 x 200mm
(4.9 x9.8 x0.66ft)		2000 x 3000 x 200mm
(6.6x9.8 x0.66ft)
Spindle Power9kw HQD air cooling spindle or HSD as customer choice
Driving motorJapan YASKAWA servo motor & driver/ leadshine 1500w AC servo motor
Tool Stock8/10/12/18/20 Tools(Circular tool holder on Z axis)
Structure6mm thickness or 8mm thickness heavy strong body
TransmissionHelical gear rack and SHIMPO Reducer
XYZ Guiding RailsTaiwan HIWIN 30mm square rails
Machining Accuracy<0.03/300mm
Maxi Working Speed24000mm/m
Spindle Speed6000-36000rpm
ControllerTaiwan Syntec ATC controller ( NC studio is optional)or as customer choice
Format of instructionsG code or HPGL
VoltageAC 380V/60Hz
Net Weight3600KG3800kg4800kg
Packing size3860x 2230x1900mm
17CBM		4200x2230x1900mm
18CBM		4200x2230x1900mm
18CBM
