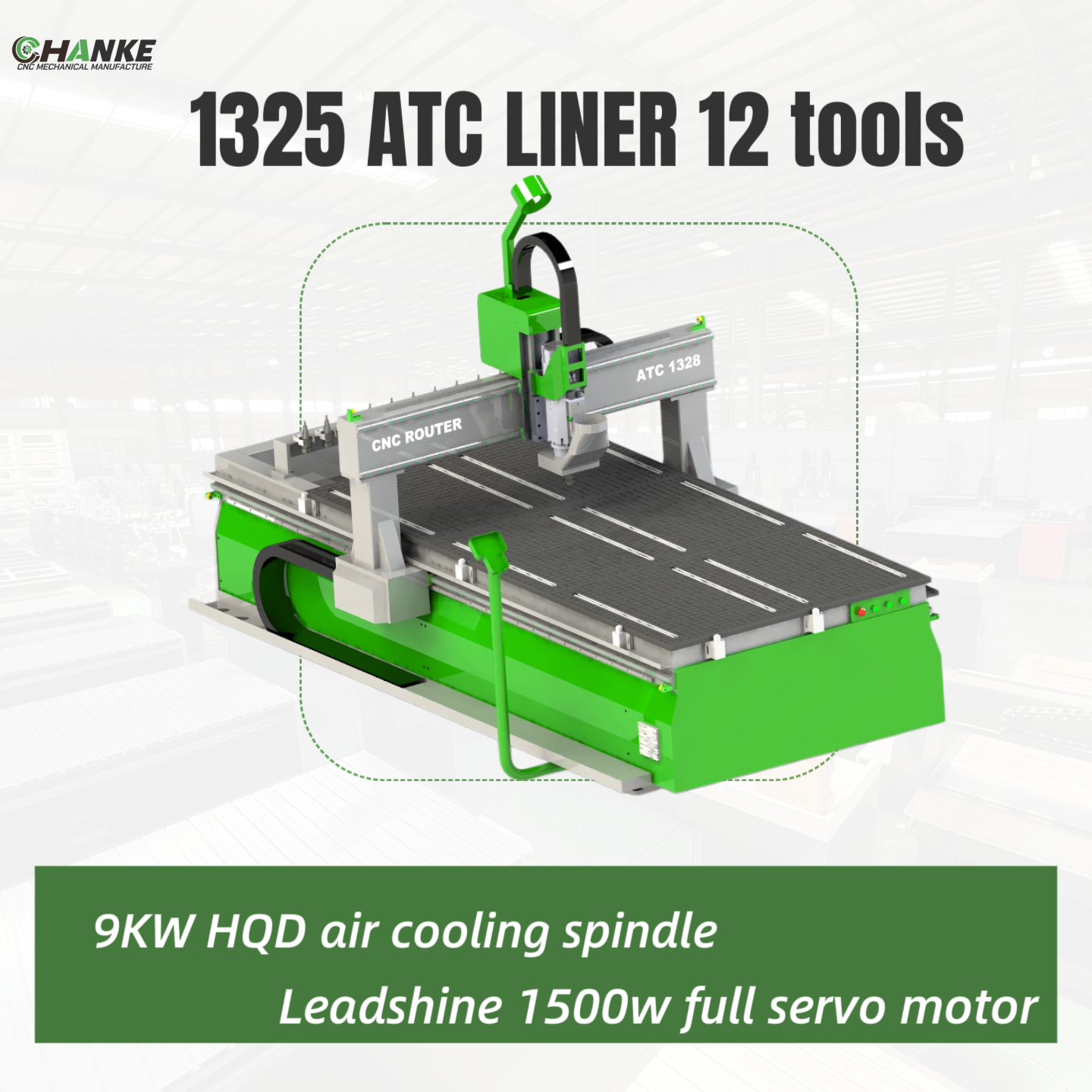

CK1325 Water Cooling Spindle Wood Engraving and Cutting Machine

Item Index

Specification Description

2100x2800mm working size

Bed structure

4-5mm thick steel tube welding, 5-face  milling by machining center

Vibration Stress Relief + Shot Blasting +  Powder Coating Process

Gantry Mechanism

Large square tube with steel welding  crossbeam; 5-face milling by machining center; side-mounted machining center  columns

Spindle Head

Precision-machined  6061-T6 aluminum alloy head

Linear Guides

X/Z axes: HGH25 square  rail; Y-axis: HGH30 square rail

HIWIN

Transmission System

X/Y axes: 1.5M ground rack and pinion;  Z-axis: TBI-SFU25 ball screw

Motor driver

xinjie1.5kW AC servo kit

Z braking  system

Reducer

Nidec_SHIMPO_LN08130  REDUCER

Spindle motor

HQD 9.0kW 24,000rpm ISO30 air-cooled ATC spindle

Frequency Inverter

AIGT_11.0kw  inverter

Tool Changer Type

Rear-mounted T12 linear tool magazine

Tool Holder Type

ISO30-ER32

Control System

xingduoweiHC203C control system

Control Cabinet

External/internal independent cabinet (optional)

Work Table

Single-layer vacuum adsorption + T-slot table

Positioning Device

4-left  + 3-front positioning cylinders

Vacuum Pump

7.5kW turbo blower

Dust Collector

3.0kW dual-port dust collector

Operating Voltage

3PH_AC220V_50Hz
